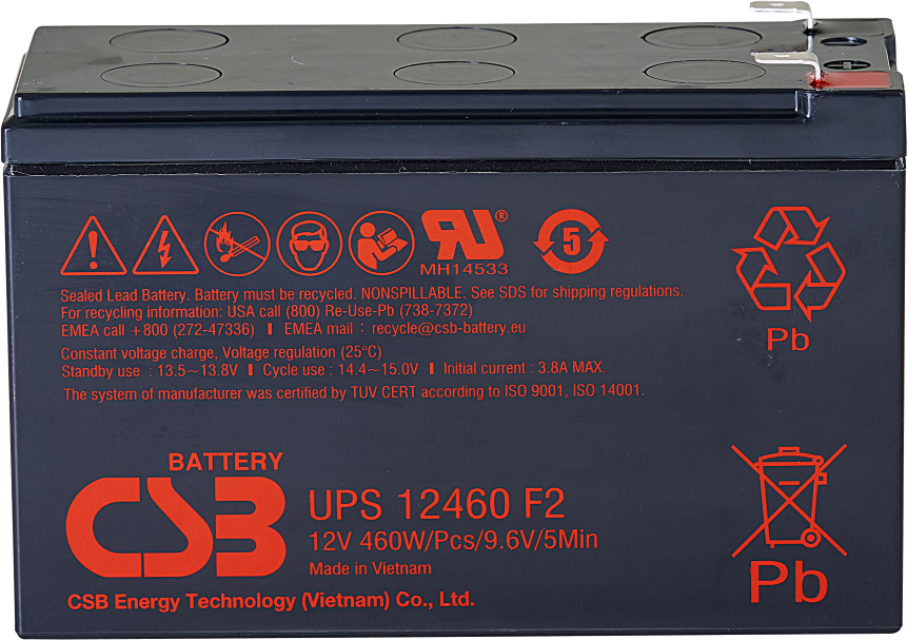

UPS Series

Standing for uninterruptible power supply, the UPS series is the first in a lineup of premium quality offerings from CSB for the UPS power application market. UPS series are specifically designed for high power discharge applications, like those found in data centers of today.

Description

Standing for uninterruptible power supply, the UPS series is the first in a lineup of premium quality offerings from CSB for the UPS power application market. UPS series are specifically designed for high power discharge applications, like those found in data centers of today. Our UPS series uses the latest wafer-thin plate technology combined with special proprietary formula, all to provide optimum high-rate performance.

  • Capacity range is from 40W/battery to 96W/battery per cell (15-min rate @ 1.67 VPC)
  • Utilizing 99.99% pure lead ingot in production for lead oxide, lead plate grids, and other lead components
  • Design life of up to 5 years in standby service
  • Optional flame-retardant ABS case construction
  • UL recognized under UL 1989 (file number MH14533)
  • Comply with IATA/ICAO Special Provision A67 for air transport, are classified per MG Amendment 27 as a non-hazardous material for water transport and recognized by DOT as “Dry charge” 49 CFR 171-189 for surface transport.

Datasheets

Individual Datasheets

User Manual

User Manual

SDS

Safety Data Sheets
